What you need is what we offer

hitech

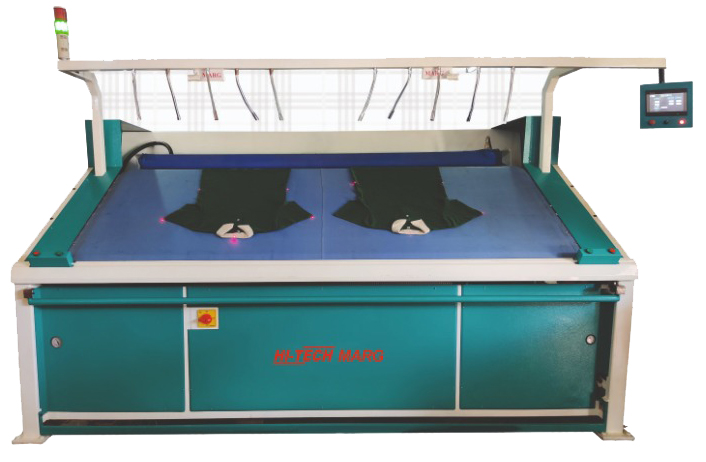

Automatic Steaming and Ironing

Features

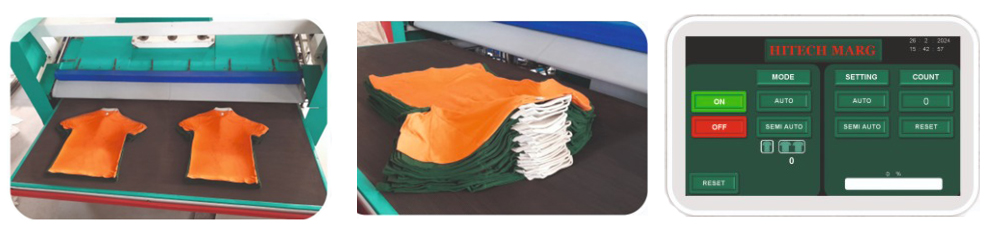

  • - Automatic converyor belt steam ironing machine, with new automatic stacker, inside the machine for reduced total dimensions.
  • - Front and rear lower tables steaming and vacuuming.
  • - Three version of upper pressing plane: electric heated, heated by steam and steaming or electric heated and steaming. Upper table pressing is adjustable.
  • - Plane dimensions: 2.50 mt X 0.90 mt Standard; other dimensions by request.
  • - Only one worker for 2.00 mt version, two workers for 2.50 mt version.
  • - Electrical and pneumatic automation, with push buttons, selectors and electronic timers to set up the working cycle.
  • - Upper table temperature is controlled by electronic thermoregulator..
  • - Smart control with touch screen and online monitoring.
  • - In touch screen to setup and memorize working cycles.
  • - Laser aiming device.

Specifications

Dimensions 3.00 mt X 2.50 mt X H2.00 mt (version 2.50 X 0.90 mt) Steam Pressure 3.5 bar
Weight 1000 Kg Sream consumption 45 Kg/h
Voltage 380V Air compressed pressure 6 bar
Frequency 50Hz / 60Hz Steam pipe 1/2"
Power consumption 2KW - 5A(min) / 8KW-20A(max) Condensed Steam pipe 1/2"
Air compressed pipe 1/4" Vacuuming pipe 110mm
